優點：
1) 材質符合飲用水標準
2) 設計和性能獨特
3) 材料經過納米改性，提高產品的整體物性
4) 原料添加抗紫外線吸收劑和抗氧劑，使產品的使用性更持久耐用
5) 可定做透明上本體
6) 密封墊可定做EPDM, PTFE或VITON
描述：
1) 材質:
UPVC, CPVC, PPH, Clear PVC, PVDF
2) 尺寸: 1/2'' - 4''; 20mm - 110mm; DN15 - DN100
3) 標準: ANSI, DIN, JIS
4) 連接: 法蘭
5) 工作壓力: 150 PSI
6) 操作溫度: UPVC(5~55℃); CPVC
& PP(5~90℃)
7) 本體顏色: PVC(深灰色), CPVC(淺灰色), PPH(米黃色), Clear PVC(透明), PVDF(象牙色)

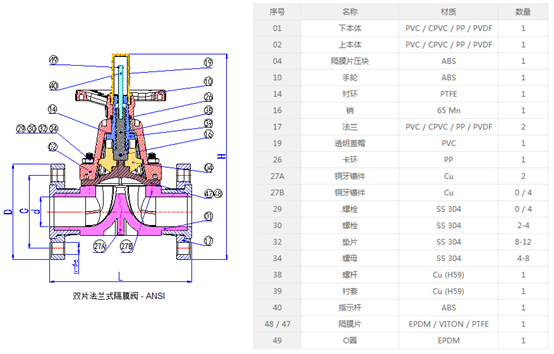

雙片法蘭式隔膜閥 - ANSI
|
尺寸 |
D |
C |
d |
L |
H |
n-φe |
|
|
|
|||||||
|
1/2'(15) |
87.00 |
60.30 |
15.00 |
106.00 |
170.50 |
4-16 |
|
|
3/4'(20) |
98.00 |
70.00 |
20.00 |
119.00 |
181.00 |
4-16 |
|
|
1'(25) |
108.00 |
79.40 |
25.00 |
144.00 |
195.40 |
4-16 |
|
|
1?'(32) |
117.00 |
88.90 |
32.00 |
191.00 |
277.50 |
4-16 |
|
|
1?'(40) |
128.00 |
98.00 |
40.00 |
193.40 |
283.00 |
4-16 |
|
|
2'(50) |
155.50 |
121.00 |
50.00 |
232.00 |
312.40 |
4-19 |
|
|
2?'(65) |
178.00 |
140.00 |
65.00 |
263.00 |
385.00 |
4-19 |
|
|
3'(80) |
192.00 |
152.00 |
75.00 |
304.00 |
411.30 |
4-19 |
|
|
4'(100) |
230.00 |
191.20 |
95.00 |
362.00 |
449.00 |
8-19 |
|
單片法蘭式隔膜閥 - DIN/JIS
|
尺寸 |
D |
C |
d |
L |
H |
n-φe |
|
|
DIN |
JIS |
||||||
|
1/2'(15) |
95.00 |
65.00 |
70.00 |
15.00 |
106.00 |
175.00 |
4-15 |
|
3/4'(20) |
105.00 |
75.00 |
75.00 |
20.00 |
119.00 |
184.50 |
4-15 |
|
1'(25) |
125.00 |
85.00 |
90.00 |
25.00 |
142.00 |
203.90 |
4-19 |
|
1?'(32) |
140.00 |
100.00 |
100.00 |
32.00 |
191.00 |
282.00 |
4-19 |
|
1?'(40) |
150.00 |
110.00 |
105.00 |
40.00 |
191.00 |
287.00 |
4-19 |
|
2'(50) |
165.00 |
125.00 |
120.00 |
50.00 |
231.00 |
317.00 |
4-19 |
|
2?'(65) |
185.00 |
145.00 |
140.00 |
65.00 |
269.00 |
388.50 |
4-19 |
|
3'(80) |
200.00 |
160.00 |
150.00 |
80.00 |
308.00 |
415.30 |
8-19 |
|
4'(100) |
220.00 |
180.00 |
175.00 |
100.00 |
368.00 |
444.00 |
8-19 |
